Products

Alloy No: 6000Series, Such as 6061,6063
Temper: T4~T6
Surface treatment: Mill finish.,Polishing,Powder coating , Sand Anodizing ,Painting,
Deep processing: milling, drilling hole, bending, tapping, punching, short cut, welding,
Certification: ISO9001:2008,ISO 14001:2004

Let’s Support Your Bussiness and Reduce Cost For You

Wellste can custom your Aluminum Extrusions , Also can design your own Products, Even If idea ONLY.

-Standard Packing Option-

* Long bar length profiles 3.0-6.0 meters*
* Short bar length profiles 0.3-3.0 meters*

-Loading & Shipment-

Aluminium Profiles: The Ultimate FAQ Guide

Choosing suitable aluminium profile can be an overwhelming task.

A reason this guide makes everything simple for you by answering all questions you have on aluminium profile.

So, keep reading to learn more.

What Is Aluminium Profile?

Aluminium profiles are special types of products that you will use for structural purposes in different applications.

You will use this metal profile to assist in structural purposes in the industrial, architectural, and construction applications.

T slot aluminum profile

T slot aluminium profile

What Are The Uses Of Aluminium Profile?

You will use the aluminium profiles in different industries to perform quite a number of functions.

In most cases, you will use the aluminium profiles for structural purposes in different applications.

Here are some of the uses of the aluminium profiles in three of the most common applications.

Construction Applications

You will use the aluminium profiles in the construction industry to offer high torsional and bending stiffness despite their low weight.

It is a very important piece of material that you will find in solar panel frames, and working platform structures.

Industrial Applications

You will depend on the aluminium profile characteristics to perform a number of different functions in industrial applications.

Some of the characteristics of aluminium profiles that makes it an important include stiffness, conductivity and quality surface lustre.

Architectural Applications

You will depend on the surface finish characteristics of aluminium profiles to make frameworks for doors, curtain walls and windows.

It will provide a very smooth and important finish on different architectural structures thus improving the overall image.

How Can You Connect Aluminium Profile?

There are numerous reasons that might compel you to join or connect aluminium profiles.

In most cases, you may have to connect two or more aluminium profiles to achieve a complex part.

In order to achieve this, you can employ different connection or joining techniques for the aluminium profiles.

Here are some of the connection techniques that you should consider.

Besides, you will use a range of aluminium extrusion profile connectors.

Screw Port Technique

Aluminum profile connector

Aluminium profile connector

You can use a screw port to help in connecting or joining different parts of the aluminium profiles.

Here, you will use self-tapping screws or machine screws to provide a robust and strong fix.

You can easily disassemble the connection considering proper allowance for the screw head.

Nut Truck Technique

You can also use the nut truck where you will have a proper channel for fixing nuts and bolt heads.

It is important to create a proper channel to prevent the nut from moving thus creating a strong connection.

You can use as many fasteners as you can possibly get to create a stronger bond between the aluminium profiles.

Section of aluminum profile connection

Section of aluminium profile connection

Snap Fit Technique

You cn also opt for the quickest and most secure mode of connecting the aluminium profiles through snap fit techniques.

It involves the use of screw head to connect the aluminium profiles together and then covering it to hide screw heads.

Connecting aluminum profles

Connecting aluminium profiles

Corner Cleat Technique

You will also connect aluminium profiles at different corners or angles using the corner cleats.

It has channels made of other aluminium profiles or sheet steel which accept corner cleats.

It also comes with small barbs on every side to create a friction fit or screws that fit the profiles in position.

Aluminum profile installation

Aluminium profile installation

Hinge Connection Technique

You will use the hinge connection on aluminium profiles thus allowing movement between the two connections.

It involves different connections using cylindrical features and screw ports among others to maintain high integrity connections.

Aluminum t slot connection

Aluminium t slot connection

Interlocking Connection Technique

You can also opt for the simplest and most effective connection technique which allows for strong and quick fix.

It is possible by sliding the male feature of the aluminium profile over the female feature to create strong bonds.

How Are Aluminium Profiles Made?

In making the aluminium profiles, you will use the aluminium extrusion method.

This is a process where you will force aluminium alloy materials through different dies with particular cross-sectional profiles.

To have a proper understanding, here is a step-by-step process that explains the aluminium extrusion process.

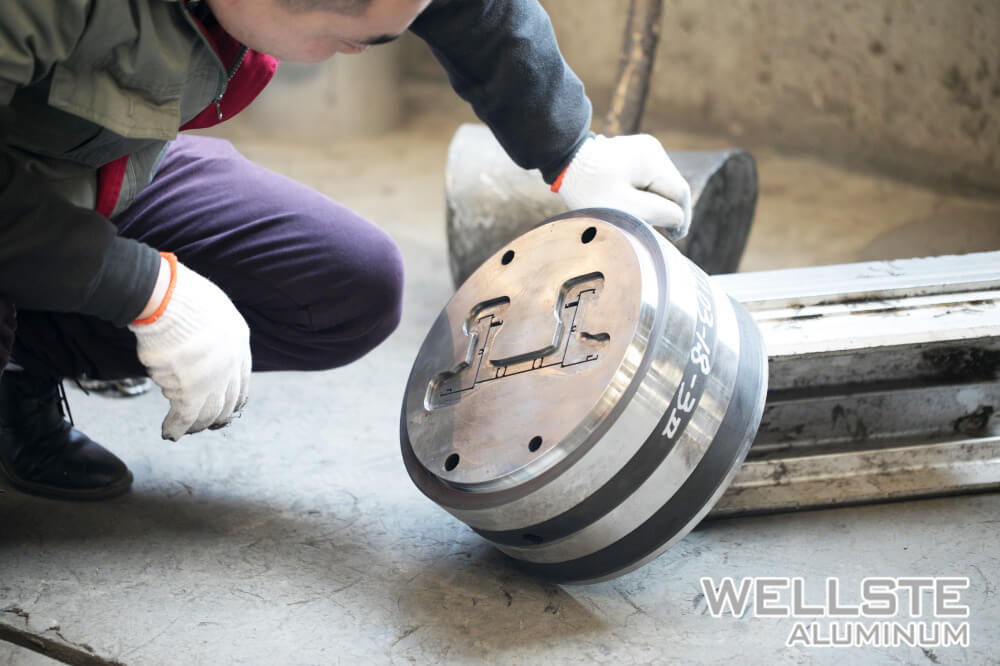

Step One: Preparation Of The Extrusion Die

First, you will prepare the extrusion die and then move it to the extrusion press.

You will use H13 steel to machine a round shaped die and then preheat it to about 450 to 500 degrees Celsius.

Heating the die will maximise its life and increase even flow of the metal before loading it to extrusion press.

After that, you will heat a solid aluminium alloy in an oven at temperatures ranging between 400 to 500 degrees Celsius.

It will make the materials malleable enough for the extrusion process even though it must not be melted.

Step Two: Extrusion Process

Aluminum profile extrusion

Aluminium profile extrusion

As soon as heating is complete, you will mechanically transfer it to the extrusion press.

You can apply a lubricant to the extrusion press to assist in loading and also act as a release agent.

In the extrusion press, a hydraulic ram will apply 15,000 tonnes of pressure thus pushing it further into the container.

The pushing force will expand the material thus filling the container walls and then pressed against the extrusion die.

The force will push the material out through the openings of the die thus emerging as a complete aluminium profile.

It will assume the shape of the container within the extrusion press.

Step Three: Quenching The Extrusions

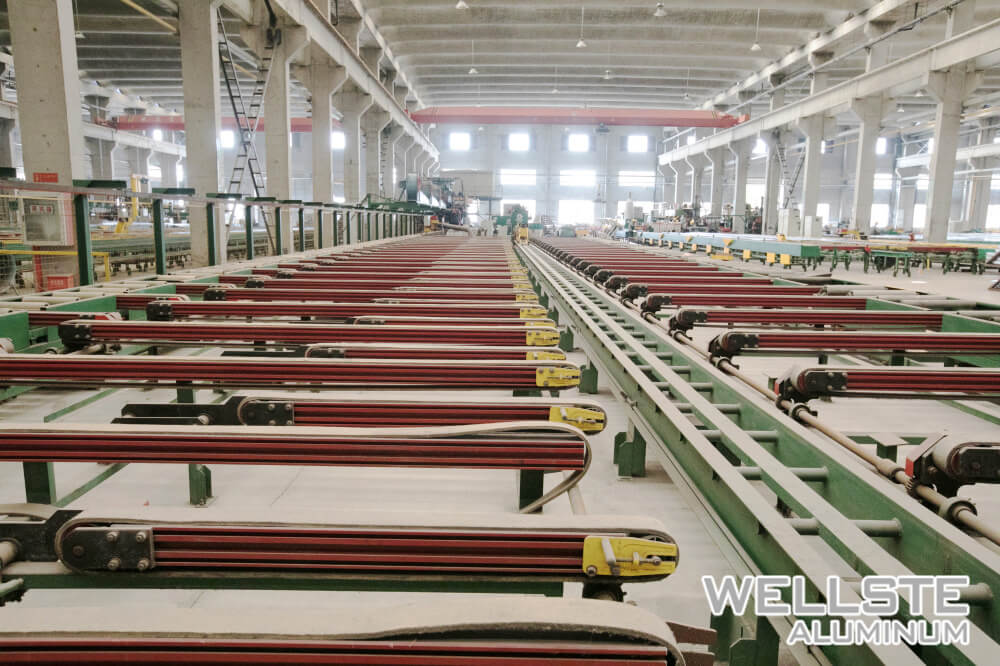

At this point, you will use a puller which will guide the extrusion over a runout table.

As it glides over the runout table, the aluminium profile is quenched through cooling using water bath.

Apart from the water bath, you can also use cool air from fans operating above the runout table.

After that, you will shape the aluminium extrusion to table length by shearing using a hot saw.

Step Four: Cooling The Extrusion

You should note that quenching the aluminium extrusion does not cool it to the desired point.

Implying that, you will have to cool the aluminium extrusion to room temperature after shearing.

You will cool the aluminium profile on a cooling table and then left on the table to achieve room temperature.

Step Five: Stretching Aluminium Profile

In the final stages of the extrusion process, you will stretch the aluminium profiles into proper alignment.

Here, you will use the stretcher which will stretch and align the aluminium profile accordingly.

Finally, you will move it to the finish saw and then cut it to the right length before heat treatment.

What Is The Cost Of Aluminium Extrusion Die?

You should also understand that the cost of the aluminium extrusion die is very low.

In other words, the extrusion process of the aluminium profiles is inexpensive.

In case you are looking for aluminium extrusion dies with simple shapes; you will spend between 550 to 750 USD.

You might also opt for the hollow designs which will require 2-piece dies costing between 1250 and 1500 US dollars.

Apart from that, you may opt for the highly complicated designs which will cost you as much as 4999 US dollars.

How Does Drawn And Extruded Aluminium Compare?

You can choose between the drawn aluminium or the extruded aluminium depending on application specifications.

To make the right choice, you should understand the difference between the drawn aluminium and extruded aluminium.

The main difference between the two types of aluminium profiles is the mode of shaping using the die.

Extruded Aluminium

Extruded aluminium profiles involve pushing the materials through a die to get the shape that you desire.

In this case, you will determine the shape of the final product by determining the shape of the die.

Drawn Aluminium

On the other hand, you will make the drawn aluminium profiles by using different types of molds.

In this case, you will use the plastic deformation technique to make the drawn aluminium profiles.

You will, however, experience a hard time trying to determine the plasticity and flexibility of the drawn aluminium extrusion.

This is because the process does not involve stretching which will tear the aluminium to desired levels.

It os the best type of aluminium profile that you will use for making tins, pots, cand, among other circular objects.

Why Buy Aluminium Profiles From China?

Well, you should consider purchasing the aluminium profiles from China due to a number of reasons.

Here are the benefits that you will enjoy by purchasing your aluminium profiles from China.

Low Cost Of Aluminium Profiles

You will spend less in purchasing the aluminium profiles from the manufacturers in China.

Chinese manufacturers use high tech resources and get raw materials cheaply thus reducing the cost of production.

High Quality Materials

Despite purchasing the aluminium profiles at a lower cost, you should expect to have very high-quality products.

Chinese manufacturers use high-quality raw materials and advanced technology to produce high quality aluminium extrusions.

How Do You Test Quality Of Aluminium Profiles?

Quality is paramount in every step of the manufacturing process of the aluminium extrusions.

Implying that, you have to check the quality of every input that you place in extrusion of aluminium profiles.

Here are the main quality inspection techniques that you can use to ensure high quality of the aluminium profiles.

Inspection Of The Extrusion Materials

One of the most important steps to ensuring high quality aluminium profiles is inspecting the extrusion materials.

In this case, you will conduct Aluminium alloy checks, Extrusion dye checks, and additive checks to ensure high quality profiles.

Visual Inspection Of Aluminium Extrusions

In this case, you will use the power of observation to visually inspect the aluminium extrusions.

In visual inspection, you will perform visual defects check, colour and glossiness check, dimensional inspection, and finishing and coating check.

Apart from that, you should also consider the weight and density check of the aluminium profiles.

Inspection Of Extrusion Performance

You must also look at the performance of the aluminium profiles through different stages to maximise on quality.

Here, you will perform tensile check, weldability check, workability check, corrosion resistance check, hardness test, flammability test, and abrasion resistance check.

In addition to that, you will look at weathering resistance as well as chemical resistance checks.

Is There Standard Dimensions For Aluminium Profiles?

Yes, there are standard dimensions for the aluminium profiles.

Implying that, when you order aluminium profiles without proper specifications, you will receive them in standard dimensions.

Apart from that, you can also opt for custom dimensions of the aluminium profiles.

In other words, you can dictate the type, length, width, and shape among others of the aluminium profiles.

How Do You Customize Aluminium Profiles?

Other than having the standard aluminium profile dimensions, you can opt for customized aluminium dimensions.

In this case, you will have to come up with a proper design with particular dimensions of the aluminium profile.

Apart from the design, you will have to provide the following details to your manufacturer.

  • Shape of the Aluminium Profile
  • Weight of the Aluminium Profile
  • Dimensions in terms of size of the aluminium profile such as length and width

In addition to the above specifications, you can go further and explain other specifications such as:

  • Strength of the Aluminium Profile
  • Conductivity of the Aluminium Profile
  • Hardness of the Aluminium Profile
  • Corrosion Resistance Levels
  • Flammability of the Aluminium Profiles
  • Workability of the Aluminium Profile

Which Types Of Aluminium Profiles Do You Have?

You can choose from the different types of aluminium profiles and we will definitely supply.

Remember that, every type of the aluminium profile comes complete with its own specifications.

Implying that, you will use different types of aluminium profiles for different purposes.

Here are the main types of aluminium profiles that you can choose from.

Channel Aluminium Profile

Aluminum channel profile

Channel aluminium profiles

You can opt for the U or C channel aluminium profiles with radius corners intended for structural applications.

It is available with different alloys including 6061 and 6063 thus providing great strength to different structures.

Depending on your unique requirements, you can choose from a range of aluminium channel profile such as:

  1. Aluminium C channel extrusion
  2. Extruded aluminium F channel
  3. Aluminium U channel extrusion
  4. Extruded aluminium T channel
  5. Aluminium J channel extrusion
  6. Extruded aluminium H channel

Aluminium Window Profile

This type of aluminium profile feature extended polyimide thermal breaks that enhance its thermal performance.

It uses polyimide thermal breaks to create a proper barrier between warm air inside and cold air outside.

Depending on your specific needs and requirements, aluminium window profiles come in a range of configurations and designs.

Aluminum window profiles

Aluminium window profile

Aluminium Door Profile

You can opt for aluminium door profiles that have varying sturdiness for supporting heavy glass panes for natural lighting.

It allows you to extrude and curve them into different shapes and sizes to fit application specifications in construction.

Uses of aluminum door profile

Aluminium door profile

Hollow Aluminium Profile

Just from the name, you can note that the hollow aluminium profile has holes through them with great corrosion resistance properties.

You can use them in different construction applications due to their strength, high grade, and inherent properties.

Aluminium hollow profiles also come in different configurations depending on the specific uses.

Hollow aluminum profiles

Hollow aluminium profile

Aluminium Profile Enclosure

This type of aluminium extrusion is light in weight with very thin walls and can also be sturdy with thick walls.

You will use extruded aluminium enclosure profile to make different types of enclosures befitting your application desires.

Extruded aluminum enclosure profile

Extruded aluminium enclosure profile

Aluminium Profile For Gear Pumps

You can also opt for the aluminium profile which you will use on different types of gear pumps.

This type of aluminium profile is capable of withstanding the highs and lows of operation within the gear pumps.

Depending on you design specification, you can choose any design of aluminium extrusions profile for gear pumps.

Aluminum profile for gear pumps

Aluminium profile for gear pumps

Aluminium Profile Brackets

This is a durable and easy to install aluminium profile for connecting two profiles with 45 degrees oblique angle.

You should consider using this type of aluminium profile because of its strength and stable nature.

Here are some of the most common extruded aluminium bracket profiles:

Extruded aluminum bracket profiles

Extruded aluminium bracket profile

Aluminium Profile Workbench

You can also have the aluminium workbench profile with great sturdiness that will support a lot of weight.

Die to high durability levels, you should consider using it in factories and new laboratory settings.

Aluminum profile for work bench

Aluminium profile for work bench

Conveyor Aluminium Profile

You will special types of aluminium materials such as aluminium 6063 to make the extruded aluminium conveyor profiles.

Apart from that, this type of aluminium profile has ELOXAL coating that increases its corrosion resistance properties.

Aluminium Glass Frame Profile

This is a hollow aluminium glass profile with enough strength and sturdiness to withstand the weight of the glass.

Despite the strong and sturdy nature, it is also very light in weight thus improving the application specifications.

Aluminum glass frame profile

Aluminium glass frame profile

Aluminium Louver Profile

You will use extruded or compressed aluminium frames, slats, and driving mechanisms to build aluminium solar shading louvers.

It is the best type of aluminium profile for exterior walls on buildings, lighting ceilings, and slopes among other applications.

Aluminum profile for lourve

Aluminium profile for Louver

Aluminium Edge Profile

You will use this type of aluminium profile to fix and prepare the edges in different buildings and architectural applications.

Aluminum edge profile

Aluminium edge profile

Aluminium Construction Profiles

You will use the aluminium construction profiles for construction purposes on different construction sites.

This type of aluminium profile is strong and sturdy to help in supporting heavy construction weight while resisting corrosion.

Which Material Grade Do You Use For Aluminium Profiles?

In the manufacturing process of aluminium profiles, you have to choose your materials wisely.

The best materials that you will use for manufacturing of aluminium profiles are:

  • 6000Series of aluminium such as 6061,6063
  • 1000series of aluminium
  • 7000series of aluminium

Remember, the choosing any aluminium grade material will depend on the applications of your profiles.

Besides, the design of the aluminium profile will also determine the material grade.

Moreover, aluminium grade material will eventually determine the price.

Which Aluminium Profile Accessories Do You Offer?

Aluminum profile accessories

Aluminium profile accessories

You will need aluminium profile accessories to help in the assembly of aluminium profile frames.

All the accessories that you will need to help in assembly of aluminium profiles are divided into series.

Generally, you will use the aluminium profile accessories for covering of nuts, bolts, connectors, casters and hinges among others.

Here are the main types of aluminium profile accessories that you can use.

  • Decorating Parts
  • Connector
  • Connector
  • Bolt & Nut
  • Joint
  • Caster & Wheel
  • Bracket

What Are The Available Surface Treatment Options For Aluminium Profiles?

You should also consider treating the surface of the aluminium profiles in order to increase the service life.

Surface treatments help in reducing corrosion on the aluminium profiles thus increasing durability levels.

Here are the main types of surface finishes that you can have on your aluminium profiles.

  • Mill Surface Finish
  • Polishing Surface Finish
  • Powder Coating Surface Finish
  • Sand Anodizing Surface Finish
  • Painting Surface Finish

What Are The Thickness Of Aluminium Profiles?

One of the most important dimensions in the aluminium profiles is the thickness.

When looking at the aluminium profile thickness, you should consider three main thickness aspects.

Here are the three main thickness aspects that you need to look at.

General Extrusion Thickness

The general extrusion thickness of aluminium profile should range between 0.6 – 5.0 mm.

Anodized Protection Thickness

You should also look at the anodized protection thickness which ranges between 8 and 25 ums.

Powder Coating Thickness

In addition to that, you have to consider the powder coating thickness ranging between 40 and 120 ums.

The best part, we can customize all these aluminium profile thickness depending on your unique requirements and specifications.

What Are The Available Colour Options For Aluminium Profiles?

You have the freedom of choosing any colour of aluminium extrusion that you want.

Implying that, there are minimal restrictions when it comes to the colours of the aluminium profiles.

All you have to do is choose the most suitable colour and we will make it work for you.

How Long Does It Take To Produce Aluminium Profiles?

The extrusion process of aluminium profiles is quite fast especially because of the automatic machines.

Implying that, you can produce the aluminium profiles within a day depending on the quantity.

Most of the processes are automatic except the cooling of the materials to room temperature.

This is the point where you might wait longer thus increasing the production time.

After confirming the sample and making down payment, you should expect the aluminium profile within 15 to 20 days.

Remember, the time frame will also depending on the complexity of aluminium profile you need.

What Are The Benefits Of Using Aluminium Profiles?

You should consider using the aluminium profiles based on the numerous benefits that come with it.

Implying that, there are numerous advantages of using the aluminium profiles such as:

Light In Weight

It is light in weight and allows you to apply them in varying applications thus reducing the overall weight.

The light weight will also make the aluminium profiles cheaper and very easy to transport from one place to another.

Corrosion Resistance

You should also consider using aluminium profiles because of their resistance to corrosion thus increasing durability.
It has the ability to generate protective coating naturally thus keeping away rust that might affect is durability.

Ductility And Reflectivity

It is also a very good reflector thus improving the relationship between light and boosts the house beauty.

Apart from that, it also has the ability to reflect heat thus proper for heat control applications.

Are There Limitations Of Using Aluminium Profiles?

Unfortunately, there are particular limitations that you might experience with the use of aluminium profiles.

Here are some of the limitations that should never discourage you from using aluminium profiles.

Requires Special Process Welding

You should note that the aluminium will require special process welding thus increasing production cost.

High Cost

In comparison to steel, you will note that the aluminium profiles generally cost a lot more.

What Is Your MOQ For Aluminium Profile?

We have flexible MOQ for all our aluminium profile.

In most cases, it’s a low MOQ as we strive to support small business and OEM partners.

Feel free to contact us in case you need more information on our MOQ.

Wellste guarantee high quality aluminium profiles at competitive prices.

Scroll to Top
